Wired Connection

Make sure printer is turned on before starting wired connection setup.

If the power is on, the ON lamp (A) will be lit or flashing.

• Notes on Wired Connection(Appears in a new window)

Important

• If printer is performing cleaning, print head alignment, or other processes, wait for the process to finish, before starting setup.

Press the Setup button (B).

You will need an Ethernet cable (sold separately).

Remove the Cap (C) from the port located on the left side at the back of the printer.

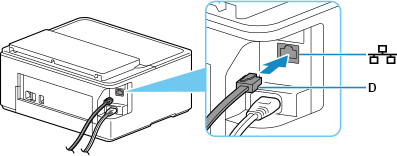

Connect the printer and a network device (router, etc.) with an Ethernet cable (D).

Do not connect to any other port.

Use the or button (E) to select Device settings and press the OK button.

Select LAN settings and press the OK button.

Select Wired LAN and press the OK button.

Select Enab./dis. wired LAN and press the OK button.

Select Enable and press the OK button.

If the screen on the below appears, press the OK button.

If the following screen is not displayed, proceed to the next step.

Press the Setup button.

The network connection setup is now complete.

When connection is complete, appears on screen.

Return to the application software and proceed with the installation.

macOS

Click in the Dock, follow the on-screen instructions to proceed with setup.
